2-5700-IG2-P10-3A

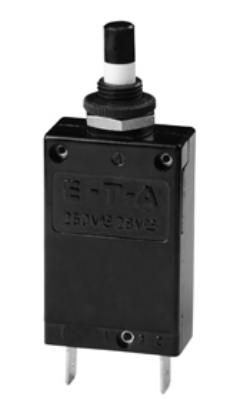

Single pole thermal circuit breaker with thread neck panel mounting and screw terminals, manual push to release

Applications: Motors, transformers, solenoids, battery chargers, power supplies,appliances, machinery, extra low voltage systems

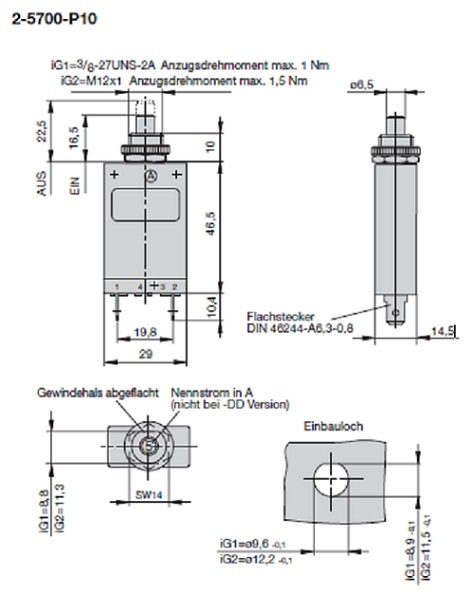

Threadneck design: moulded threadneck M12x1

Terminal design: blade terminals 6.3-0.8 mm (QC .250)

Ambient temperature: -20...+60 °C (-4...+140 °F)

Customs tariff: 85362010
